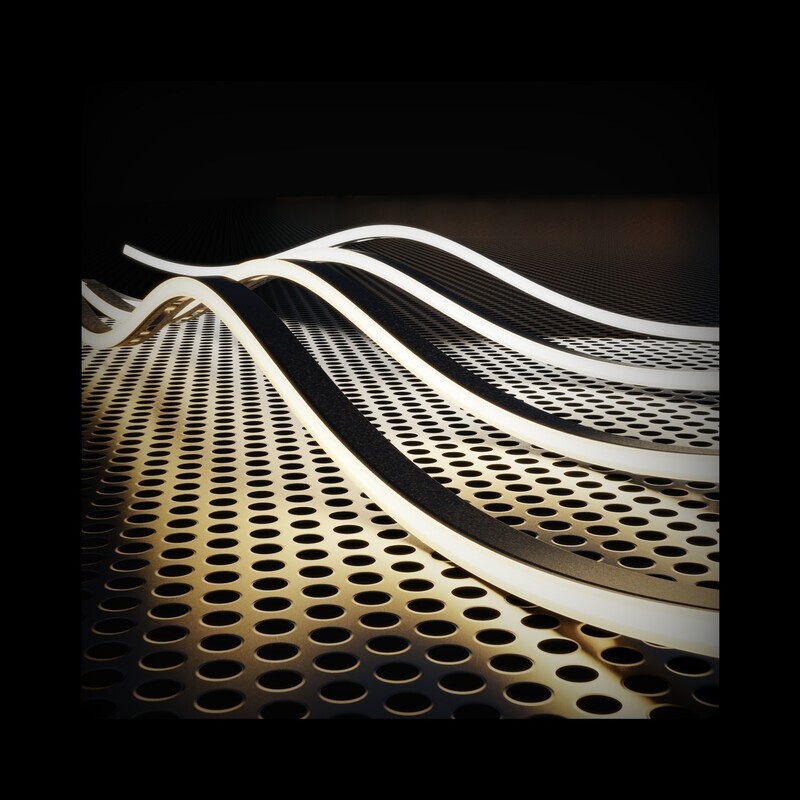

IP65 Neon Flex - Slimline

The new slimline Neon Flex is only 6mm wide and 12mm high, making it the slimmest encapsulated LED Noen Flex strip to date. In a range of colour temperatures from 2700K to 5000K. Cut and tailed in Sydney for a quick turnaround time.

Saltwater resistant and solvent resistant with UV protection.

Please contact us on (02) 6680 7007 or info@creativelightingsolutions.com.au for pricing, lead times and to process your order.



Specifications



Material:  Silicone

Voltage:  24V DC

Watts/Meter:  5W | 10W

IP Rating:  IP65

Lumen Output/Meter:  160lm -400lm

CCT & Colour Temps:  2700K | 3000K | 4000K | 5000K

Working Mode:  Constant Voltage (PWM) / DMX

Max Length (single power feed):  10m (5W) | 8m (10W)

Max Length (double power feed):  20m (5W) | 16m (10W)

Cut Interval:  50mm

Bend Direction:  Horizontally

Bend Diameter:  Minimum 100mm | Maximum 80mm

LED Type:  SMD2835 Mono | SMD4040 RGBW

LED Qty/M:  140pcs Mono | 120pcs RGBW

Lumen Maintenance:  70,000 Hours L70@ 25°C

Emission Angle:  120°

Operating Temp:  -20° to +40°C

Installation Temperature:  5° to +35°C

Accessories Available:  Aluminium Extrusions | Aluminium Clips

Warranty:  3 Years

Lead Time:  Contact us info@creativelightingsolutions.com.au





LQA Code: LQA-BGR-204-SQA/ONOM-204-SQA
